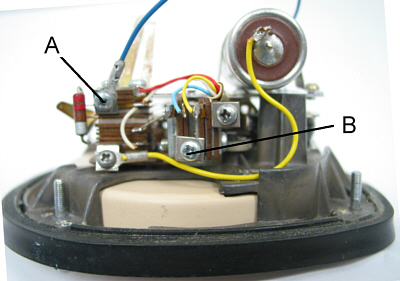

K2 K4 K5 K6 K7 K14 -
No Ringer
This chassis is one of the
earliest. It varies a bit, but for the most part the wiring is the same on all but the
Telia version.
|
K7 K14 - With Ringer
This chassis is the most common
chassis found in the USA.
|

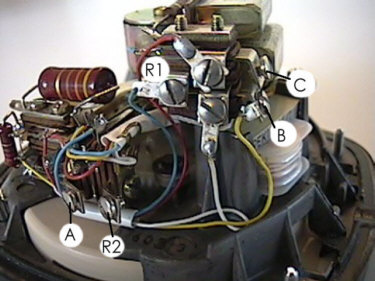

K14 International - 7 Terminal
Made in Sweden with 7
terminals. This chassis is one of the most common international configurations.
|
![K14 10 Terminal Style 1](wiring/k14_10term1_tn.jpg) |

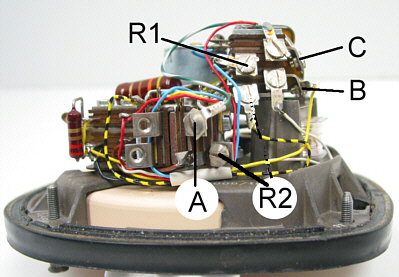

K14 International - 10 Terminal
Style 1
Made in Sweden with 14
terminals. This chassis can be recognized by the yellow and black striped wire.
|
![k14 10 terminal style 2](wiring/k14_10term2_tn.jpg) |

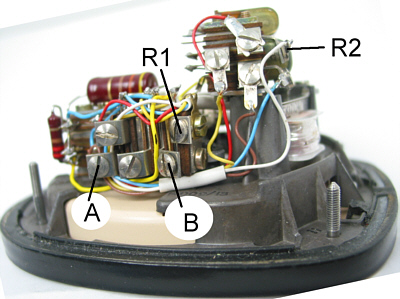

K14 International - 10 Terminal
Style 2
Made in Sweden with 14
terminals.
|

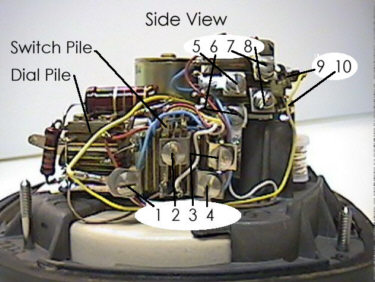

![K14 Australian](wiring/k14aust_tn.jpg) |
K14 Australian
Made in Sweden with 14
terminals for Australia.
|
![Telia](wiring/telia_tn.jpg) |

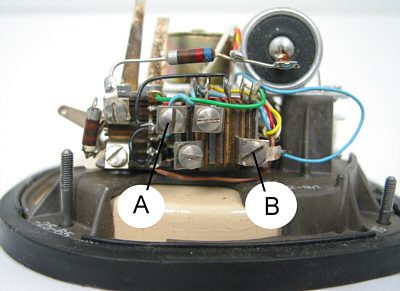

K7 Telia (Televerket) - 6 Terminal
Made in Sweden for the Telia
(Televerket) Phone Company in Sweden.
|
![PTT Chassis](wiring/ptt_tn.jpg) |

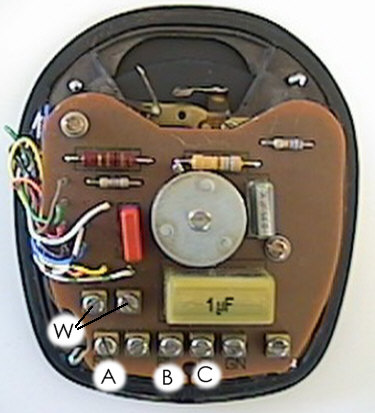

PTT Ericofon
Made for PTT in The
Netherlands. Identifiable by the black dial face.
|
![German Chassis](wiring/german_tn.jpg) |

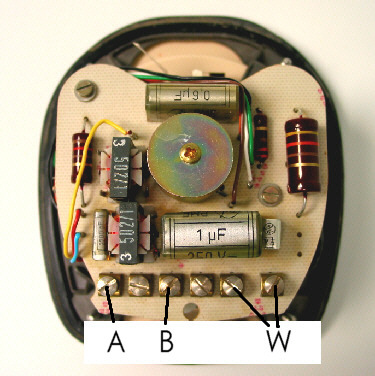

"German" Chassis
I have found this to be the
chassis used in Germany, and possibly other countries. Identifiable by the two RFI filters
mounted on top.
|

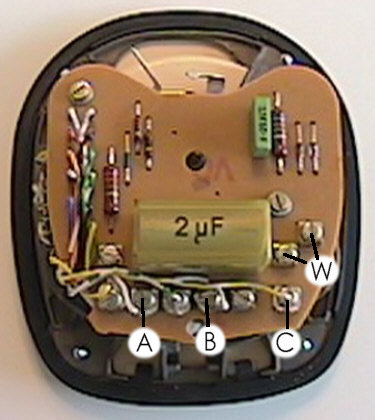

British Telecom Chassis
Made for the British telephone
system. These are seldom found with ringers.
|

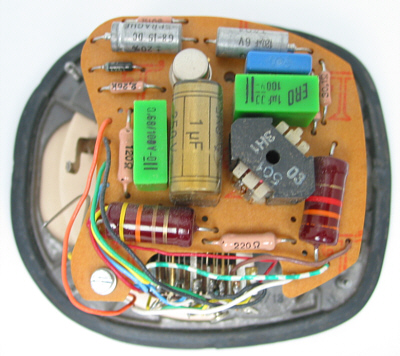

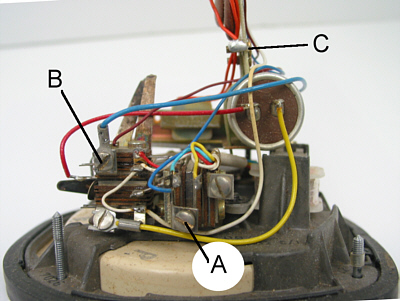

"Finnish" Chassis
I have found this to be the
chassis used in Finland, and possibly other countries. Identifiable by Ericotone cirtuitry
mounted on top.
|

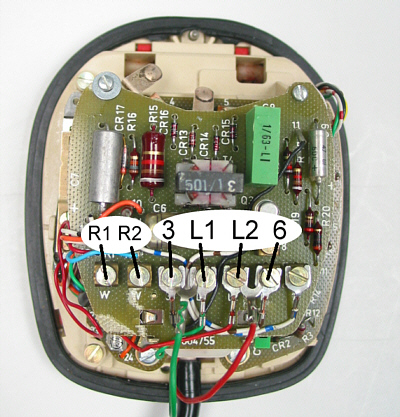

![Type 60 TouchTone Chassis](wiring/touchtone_tn.jpg) |
Type 60A TouchTone Chassis
|
Model 700
|
